LS – PL91

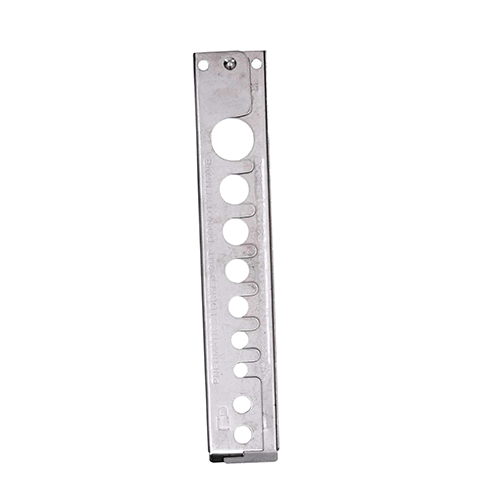

Metallic Pneumatic (Air source) lockout, 2 locking holes at the bottom
Fits for 8 mm to 45 mm valve, Accepts shackle upto 8mm
SILVER METALLIC FINISH
LS – PL91
Metallic Pneumatic (Air source) lockout, 2 locking holes at the bottom
Fits for 8 mm to 45 mm valve, Accepts shackle upto 8mm
SILVER METALLIC FINISH
Detail
• Prevent a gas source joint from reconnecting with a high pressure source,
• Suitable for almost all gas source male joints in factories; made of steel;
corrosion-resistant.
• Dimensions: 3 Width 35mm×Length 196mm×Thickness 3mm.
• Weight : 69gm
• Match able with all safety padlocks and safety hasps; used together with
hasps; suitable for
• use by multiple workers to perform lockout concurrently.
• Suitable for 0.8cm-4.5cm valves.
Product Application
- When & Where should use LOTO?
- Daily maintenance, adjustment, cleaning, inspection and commissioning for equipment. Enter into the limited space, hot work, dismantling work and so on in the tower, tank, electrified body, kettle, heat exchanger, pumps and other facilities.
- Operation involving high voltage. ( including the operation under the high-tension cable )
- Operation require closing the safety system temporary.
- Operation during maintenance and commissioning of non-processing.
