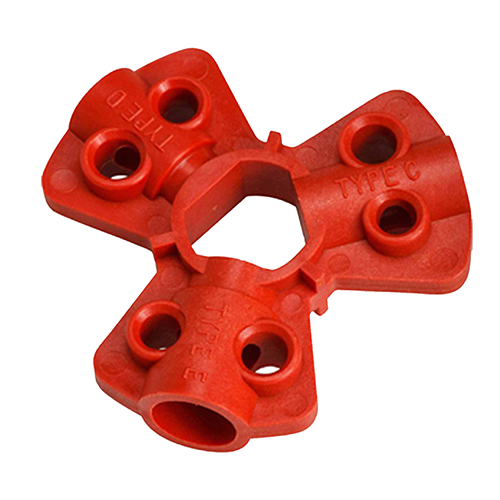

LS – PL90
Pneumatic (Air source) lockout – three way, 2 locking holes on each side
Accepts shackle upto 8mm
LS – PL90
Pneumatic (Air source) lockout – three way, 2 locking holes on each side
Accepts shackle upto 8mm
Detail
• Material : ABS
• Locking holes: 2 number each sides
• Accepts shackle maximum up to : 8mm
• Sizes : 11.70mm (C Type), 12.50mm (D Type), 15.50mm (E Type) and 20.40mm (Middle)
• Can isolate pneumatic power without installing a direct interlocking valve.
• Cost reducing, more convenient.
• The lock can be connected with an external thread coupler to realize isolation of the
equipment from all compressed air sources.
• The centre hole of the lock can be used to store an air hose permanently.
• The side ring can be used to hang the hose and the lock.
• Can use a padlock with a shackle diameter of 6.4mm or 7.1mm for
lockout purpose
Product Application
- When & Where should use LOTO?
- Daily maintenance, adjustment, cleaning, inspection and commissioning for equipment. Enter into the limited space, hot work, dismantling work and so on in the tower, tank, electrified body, kettle, heat exchanger, pumps and other facilities.
- Operation involving high voltage. ( including the operation under the high-tension cable )
- Operation require closing the safety system temporary.
- Operation during maintenance and commissioning of non-processing.
