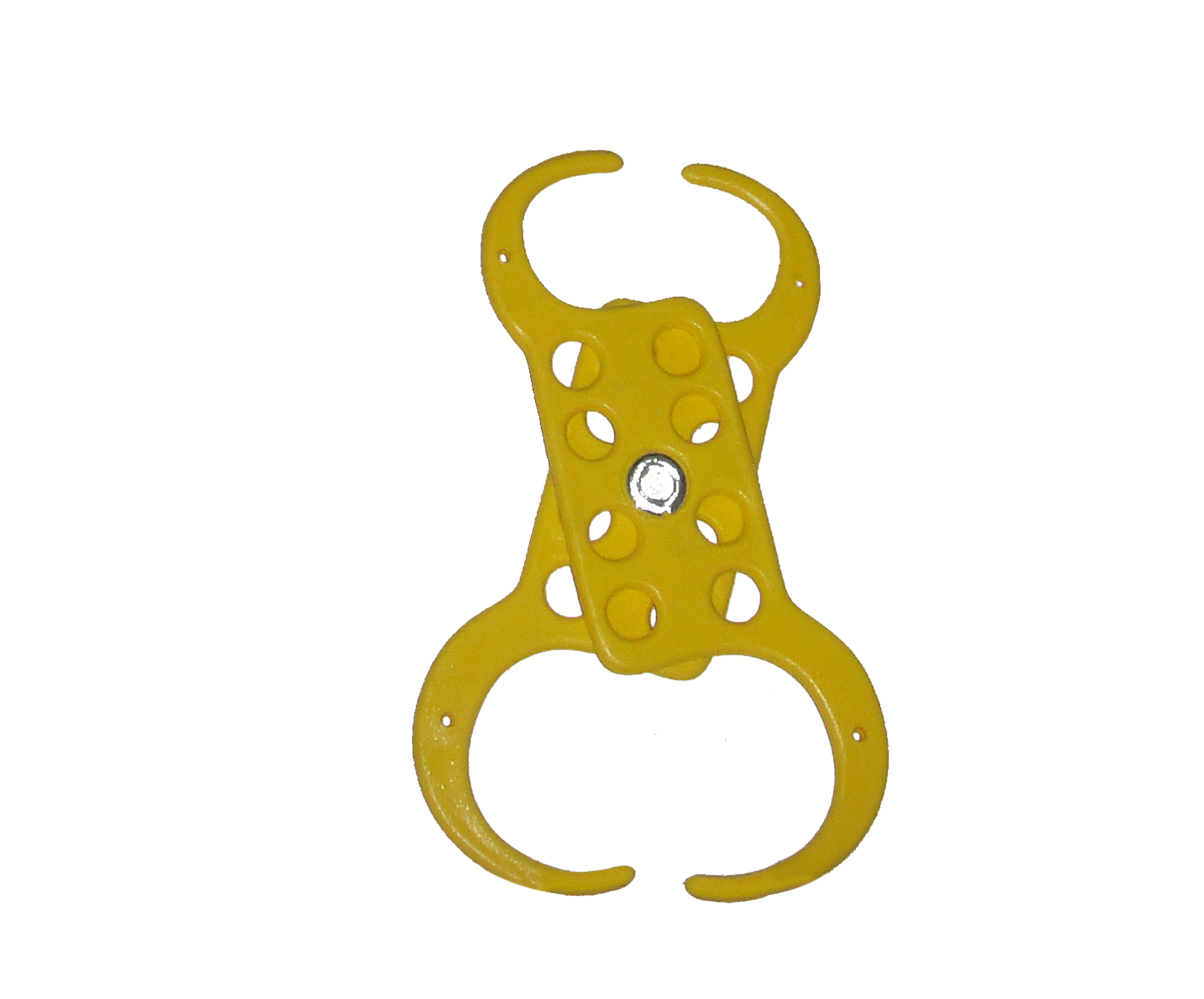

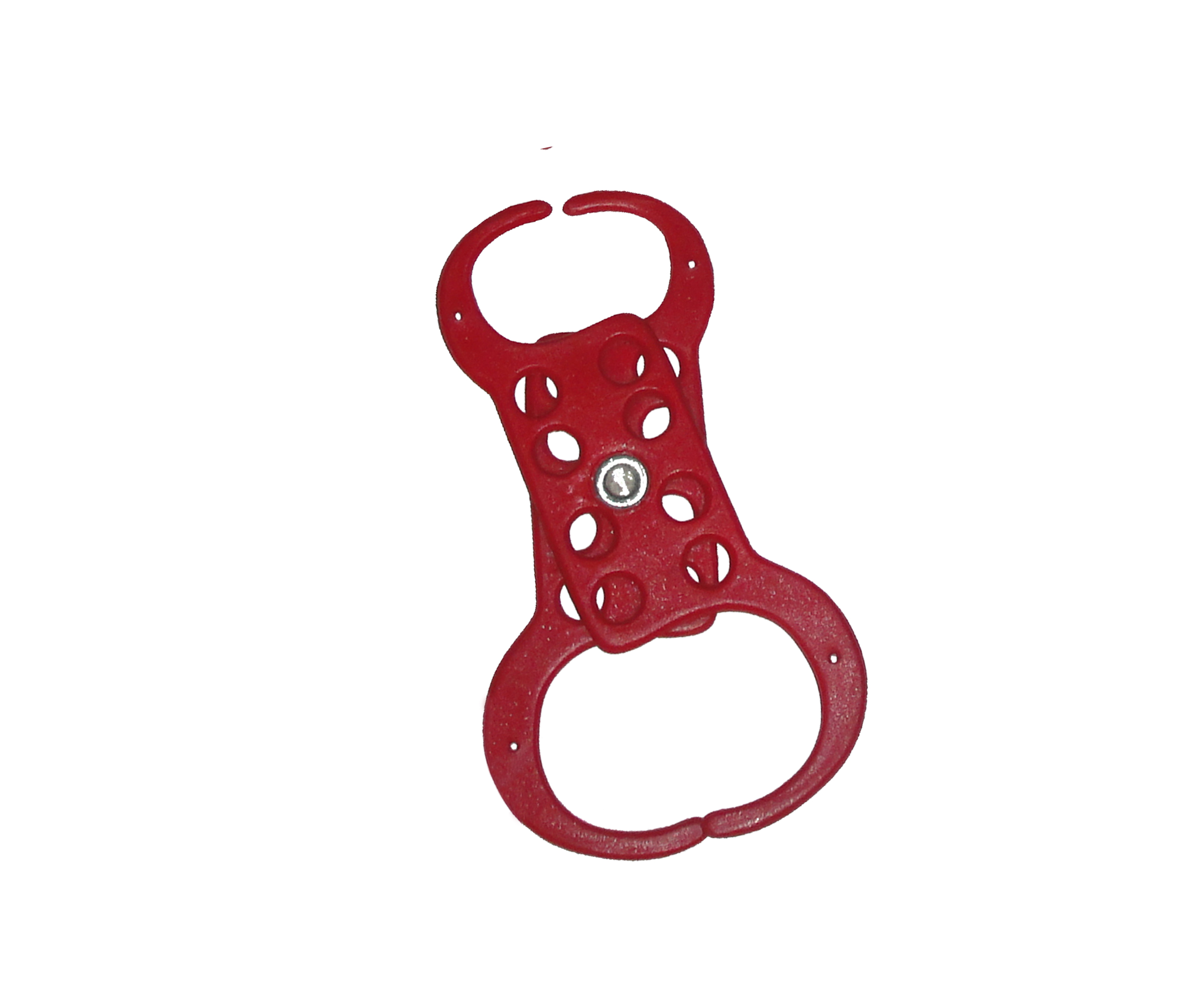

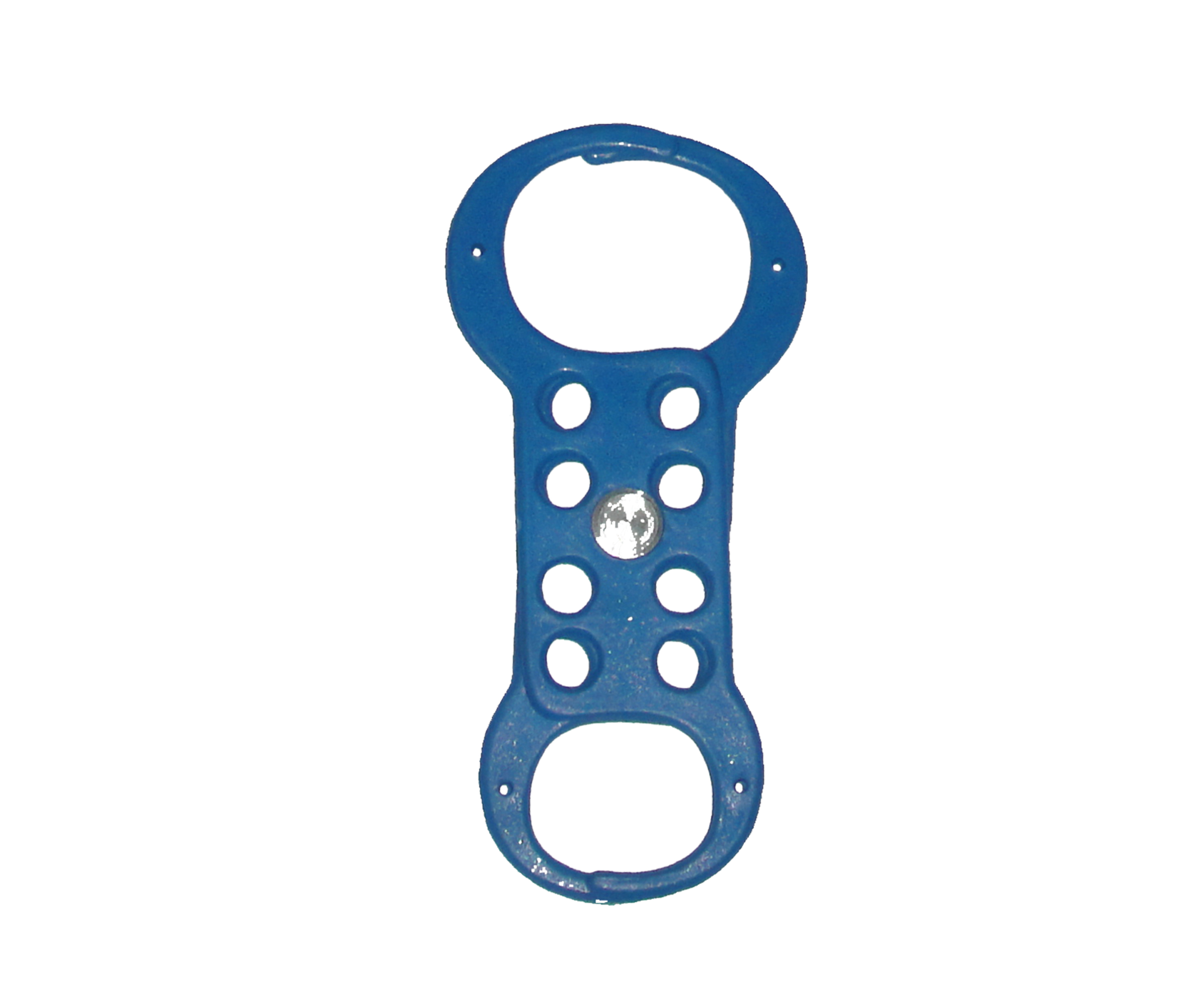

LS – H69
Used to lockout electrical as well as mechanical
devices while perform servicing, maintenance or cleaning
activities, flexible in nature hence can be used as a hasp as well
as cable lockout along with the insulated cable.
LS – H69
Used to lockout electrical as well as mechanical
devices while perform servicing, maintenance or cleaning
activities, flexible in nature hence can be used as a hasp as well
as cable lockout along with the insulated cable.
Detail
Material: ABS
• Complete length: 142.5mm
• Width: 39mm
• Jaw Size: two sides different jaw dia 26/25mm and 38/39mm respectively
• Accepts shackle maximum up to: 8.5mm
• Locking holes: 8 numbers to provide group isolation
• Weight: 21gm
• Two extra small holes provided at the edges (both sides) to hang the tags with
the help of a cable tie.
Product Application
- When & Where should use LOTO?
- Daily maintenance, adjustment, cleaning, inspection and commissioning for equipment. Enter into the limited space, hot work, dismantling work and so on in the tower, tank, electrified body, kettle, heat exchanger, pumps and other facilities.
- Operation involving high voltage. ( including the operation under the high-tension cable )
- Operation require closing the safety system temporary.
- Operation during maintenance and commissioning of non-processing.
