LS – H66
Light weighted device, preferably used to lockout electrical
devices, shock proof, highly durable, chemical resistant and break free, it’s thin
shackle (3mm) allows to lockout difficult and hard to reach points.
LS – H66
Light weighted device, preferably used to lockout electrical
devices, shock proof, highly durable, chemical resistant and break free, it’s thin
shackle (3mm) allows to lockout difficult and hard to reach points.
Detail
Material: Nylon + ABS
• Complete length: 112.2mm
• Base body size: length 64.6mm X width (Centre) 55.5mm
• Jaw Size:
– Locking holes – 4 numbers
• Accepts shackle maximum up to: 8mm
• Weight: 35gm / 32gm

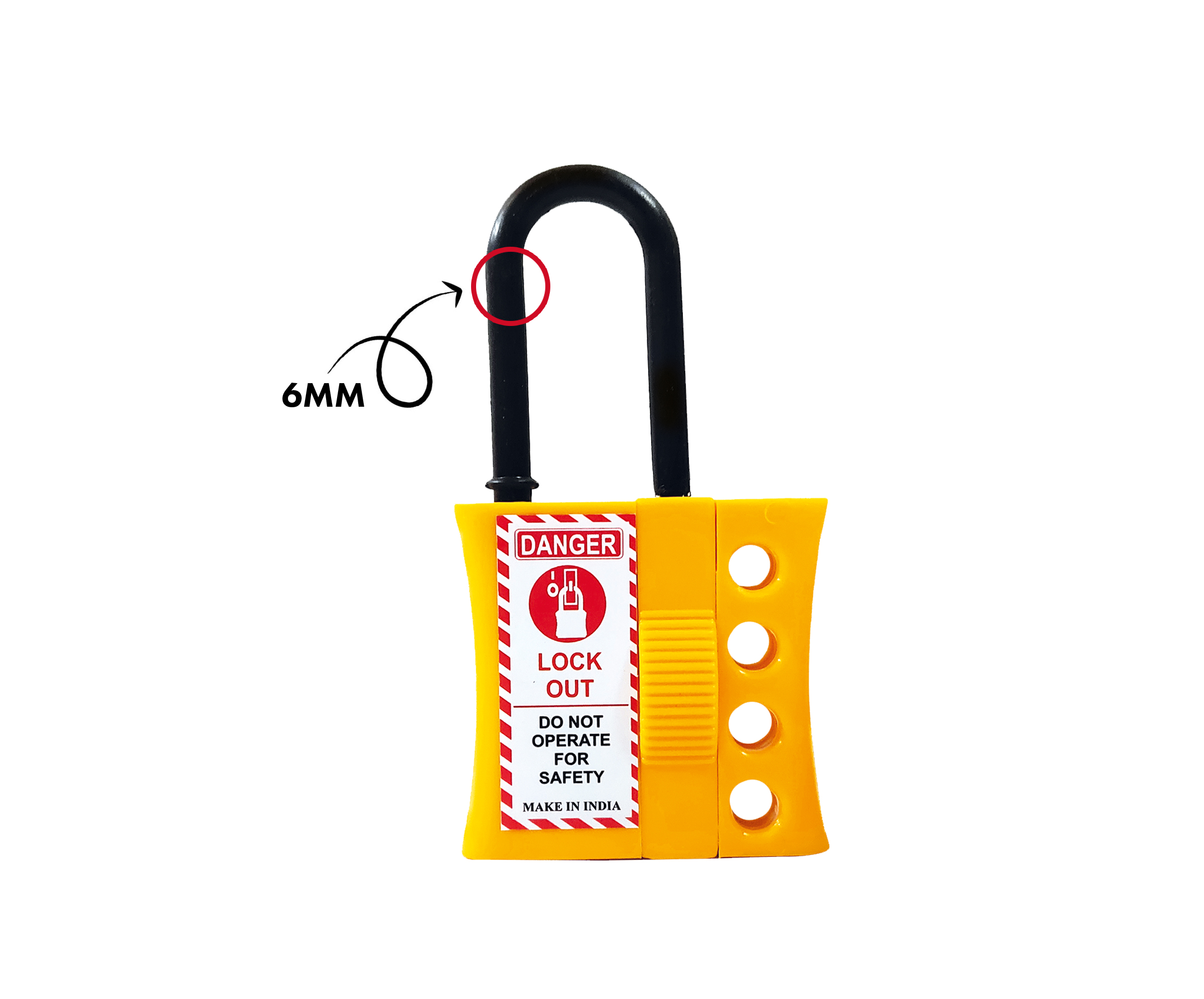

• Shackle thickness: 6mm
Product Application
- When & Where should use LOTO?
- Daily maintenance, adjustment, cleaning, inspection and commissioning for equipment. Enter into the limited space, hot work, dismantling work and so on in the tower, tank, electrified body, kettle, heat exchanger, pumps and other facilities.
- Operation involving high voltage. ( including the operation under the high-tension cable )
- Operation require closing the safety system temporary.
- Operation during maintenance and commissioning of non-processing.
