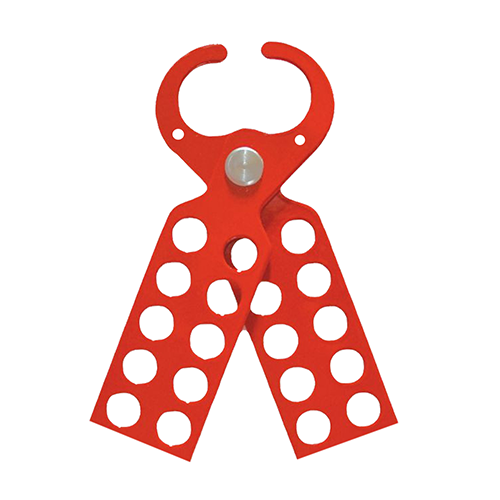

LS – H42
Used to lockout electrical as well as mechanical devices while
perform servicing, maintenance or cleaning activities.
LS – H42
Used to lockout electrical as well as mechanical devices while
perform servicing, maintenance or cleaning activities.
Detail
Material: MS + fully powder coated body
• Complete length: 25mm jaw: 114mm (6 hole) / 135.7mm (8 hole) /
151.7mm (10 hole) / 166mm (12 hole)
• Width: 39mm, thickness: 2mm
• Jaw Size: Available in two different jaw dia 25 mm Or 38/39 mm
• Accepts shackle maximum up to: 9.5mm
• Locking holes: 6 / 8 / 10 / 12 numbers to provide group isolation
• Weight: 25mm jaw: 77.5gm (6 hole) / 112.5gm (12 hole)
• Two extra small holes provided at the edges to hang the tags with the
help of a cable tie.

Product Application
- When & Where should use LOTO?
- Daily maintenance, adjustment, cleaning, inspection and commissioning for equipment. Enter into the limited space, hot work, dismantling work and so on in the tower, tank, electrified body, kettle, heat exchanger, pumps and other facilities.
- Operation involving high voltage. ( including the operation under the high-tension cable )
- Operation require closing the safety system temporary.
- Operation during maintenance and commissioning of non-processing.
