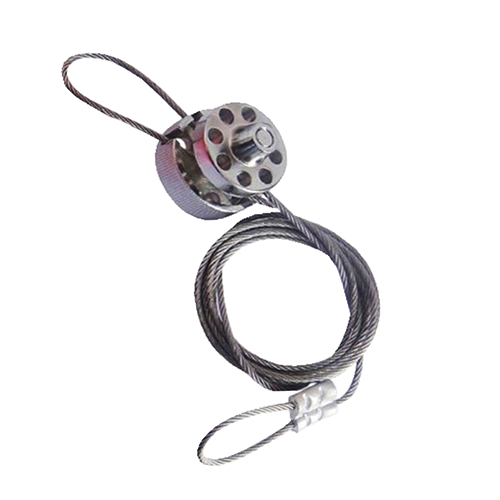

Detail

• Material:  ABS & insulated steel cable.
• Accepts shackle maximum up to : 7mm
• Locking arrangement: 6 numbers for
group isolation.
• Cable length : provided 2mtr. along
with a device Or can be customize
5mtr, 10mtr, 20mtr or more as per the
demand.
• Cable thickness : 5mm.
• Outer diameter : 47.9mm
• Cable insertion slot 6mm
• Advantages:
a. All purpose highly durable, flexible,
strong and corrosion resistant
insulted lockout device is ideal to
be used in wet or cold climate,
highly resistant to solvent and other
chemical products, resist cracking,
abrasion.
b. Ideal to lockout Electrical as well as mechanical devices
like oversized valves, switches and connectors.

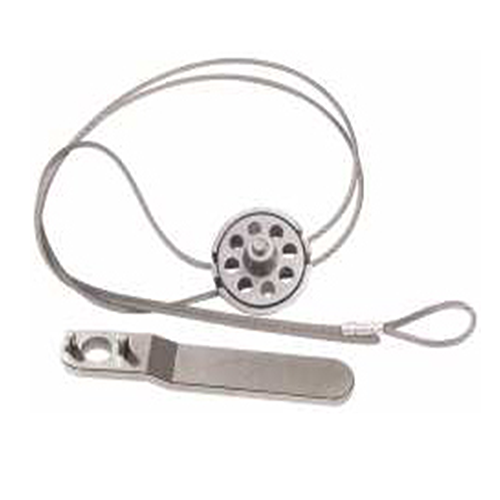

c. Can install perfectly, OPEN / LOCK by using extra tool
provided.
d. Withstands temperatures ranging from -20°C to 55°C

Product Application

• When & Where should use LOTO?
• Daily maintenance, adjustment, cleaning, inspection and commissioning for equipment. Enter into the limited space, hot work, dismantling work and so on in the tower, tank, electrified body, kettle, heat exchanger, pumps and other facilities.
• Operation involving high voltage. ( including the operation under the high-tension cable )
• Operation require closing the safety system temporary.
• Operation during maintenance and commissioning of non-processing.
