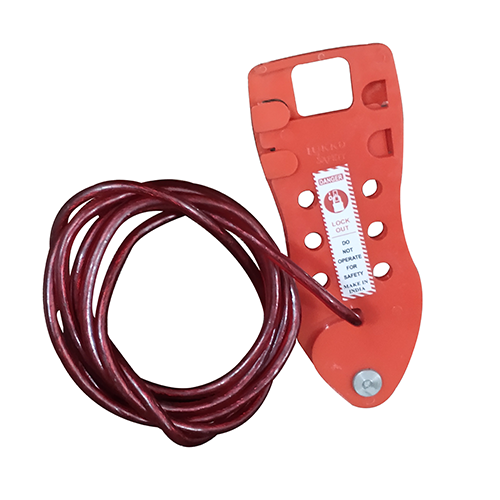

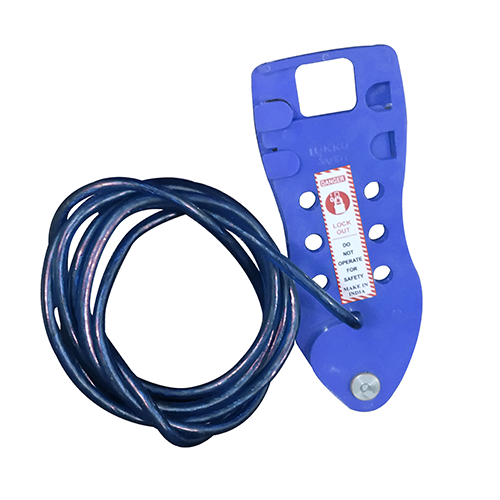

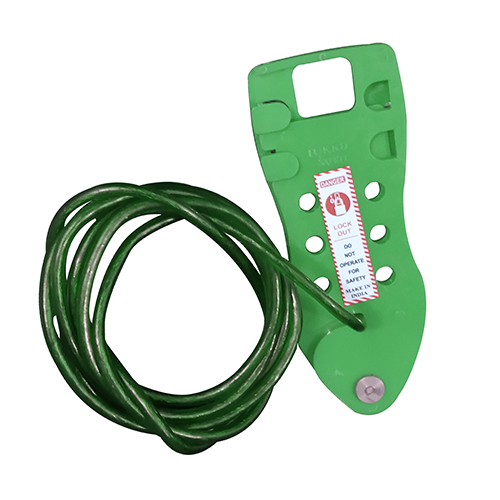

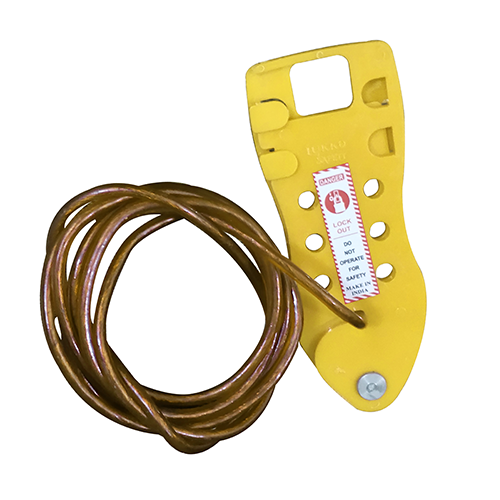

LS – C41
Multiuse cable lockout with insulated single end loop cable, 6 locking holes
LS – C41
Multiuse cable lockout with insulated single end loop cable, 6 locking holes
Detail
Material: ABS & insulated steel cable.
• Complete length : 149mm
• Jaw Size : 20mm
• Accepts shackle maximum up to : 8mm
• Locking holes : 6 numbers
• Weight : 100gm
• Locking arrangement: Carrying totally six holes for group isolation.
• Cable length : provided 2mtr. along with a device Or can be customize
5mtr, 10mtr, 20mtr or more as per the demand.
• Cable thickness : 5mm.
• Advantage:
a. The device is very versatile in nature that can be used as a hasp as well
as cable lockout to isolate difficult points.
b. This device can be used to lockout huge range of industrial plant
equipments either electrical, mechanical and even forklift steering
wheels.
c. Highly resistant to solvent and other chemical products, resist cracking,
abrasion and higher temperature changes.
• Installation Method: For the purpose of installation First shut down the
source of energy to lockout the device then tied up and fix the cable tightly
on the faulty device and bound it well , so that device can’t move and place
padlock and tag for identification.
Product Application
- When & Where should use LOTO?
- Daily maintenance, adjustment, cleaning, inspection and commissioning for equipment. Enter into the limited space, hot work, dismantling work and so on in the tower, tank, electrified body, kettle, heat exchanger, pumps and other facilities.
- Operation involving high voltage. ( including the operation under the high-tension cable )
- Operation require closing the safety system temporary.
- Operation during maintenance and commissioning of non-processing.
