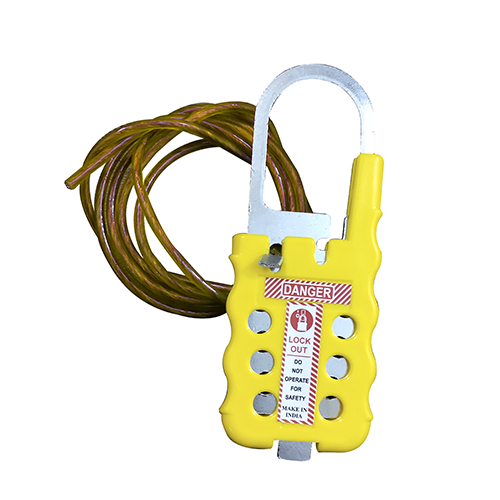

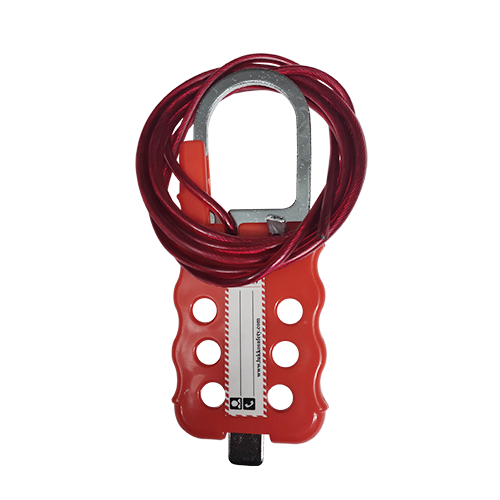

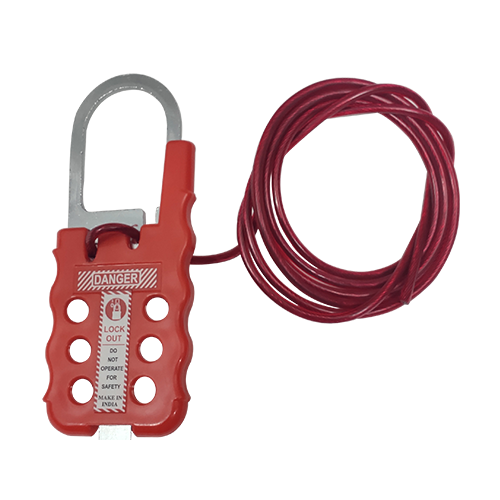

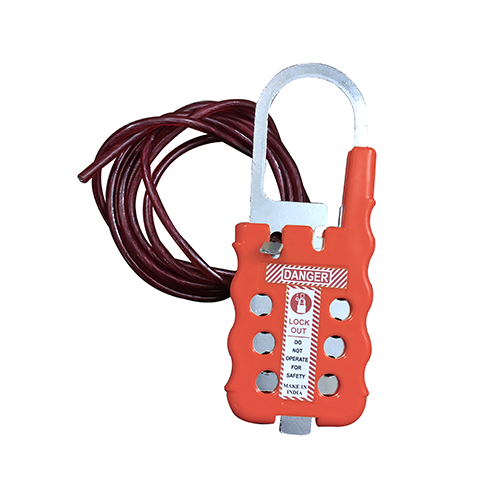

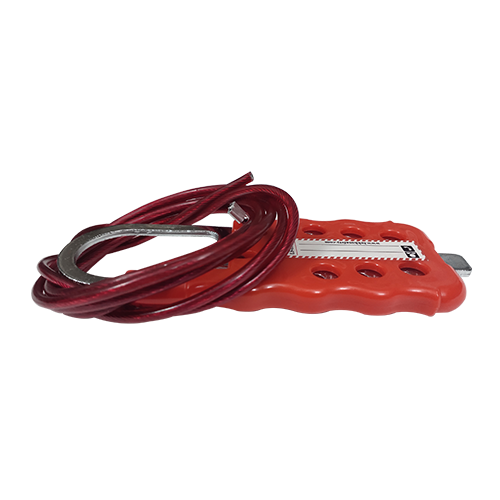

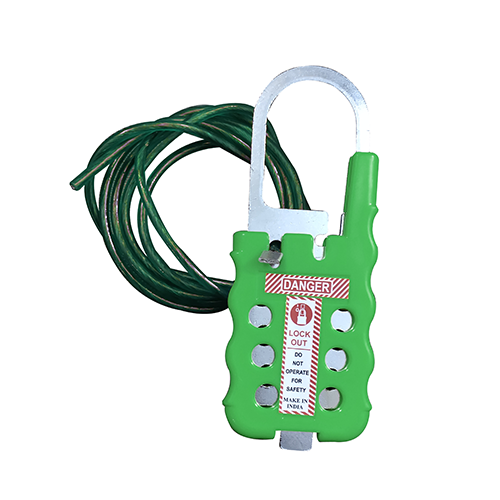

Detail

• Material : MS + chrome coating + covered by ABS & insulated steel cable.
• Accepts shackle maximum up to: 8mm
• Locking holes : 6 numbers, Jaw size : 52mm, Complete length : 150mm
• Width : 57mm
• Locking arrangement: Carrying totally six holes for group isolation.
• Cable length : provided 2mtr. along with a device Or can be customize 5mtr,
10mtr, 20mtr or more as per the demand.
• Cable thickness : 5mm.
• Advantage:

This device can be used to lockout huge range of industrial plant
equipments either electrical, mechanical and even forklift steering wheels, can be used
alone as a lockout hasp or with the provision of double sided looped insulated cable it can be
used as a cable lockout, upper cover made it electrically safe and device is corrosion resistant.

Product Application

• When & Where should use LOTO?
• Daily maintenance, adjustment, cleaning, inspection and commissioning for equipment. Enter into the limited space, hot work, dismantling work and so on in the tower, tank, electrified body, kettle, heat exchanger, pumps and other facilities.
• Operation involving high voltage. ( including the operation under the high-tension cable )
• Operation require closing the safety system temporary.
• Operation during maintenance and commissioning of non-processing.
