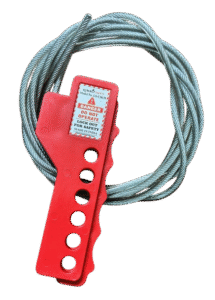

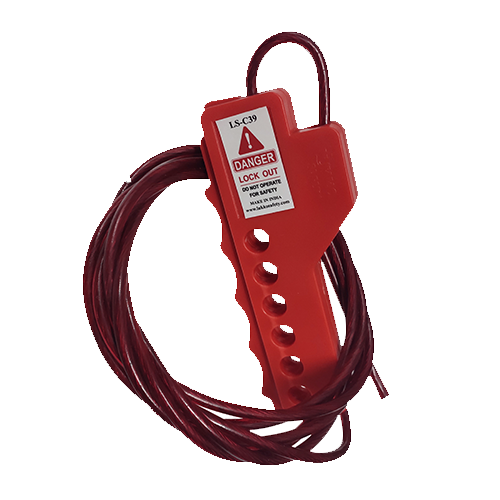

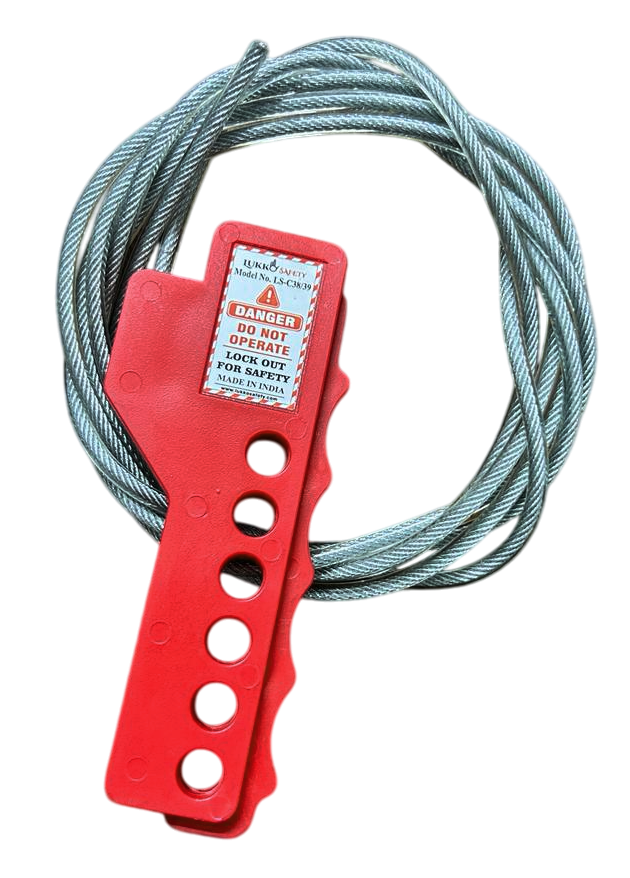

LS – C38
Adjustable Cable lockout with attached insulated cable
LS – C38
Adjustable Cable lockout with attached insulated cable
Detail
• Material: ABS + insulated Steel cable
• Accepts shackle maximum up to : 7.5 mm
• Locking holes : 6 numbers to provide group isolation
• Body measure : 20mm (L) x 12.9mm (B) x 28.2 / 47mm (H)
• Cable length : provided 2 mtr. along with a device Or can be customize 5mtr, 10mtr,
20mtr or more as per the demand.
• Cable thickness : 5mm
• Install by simply fix the cable end through the device need to be locked out
squeezing the device and tighten and adjust the cable and place padlock and tag for
identification.
• Advantages:
a. All purpose highly durable, flexible, strong and corrosion resistant insulted
lockout device is ideal to be used in wet or cold climate.
b. It’s very useful device as it can be used to lockout Electrical as well as mechanical
devices like oversized valves, switches and connectors.
Product Application
- When & Where should use LOTO?
- Daily maintenance, adjustment, cleaning, inspection and commissioning for equipment. Enter into the limited space, hot work, dismantling work and so on in the tower, tank, electrified body, kettle, heat exchanger, pumps and other facilities.
- Operation involving high voltage. ( including the operation under the high-tension cable )
- Operation require closing the safety system temporary.
- Operation during maintenance and commissioning of non-processing.
