LS- BR43

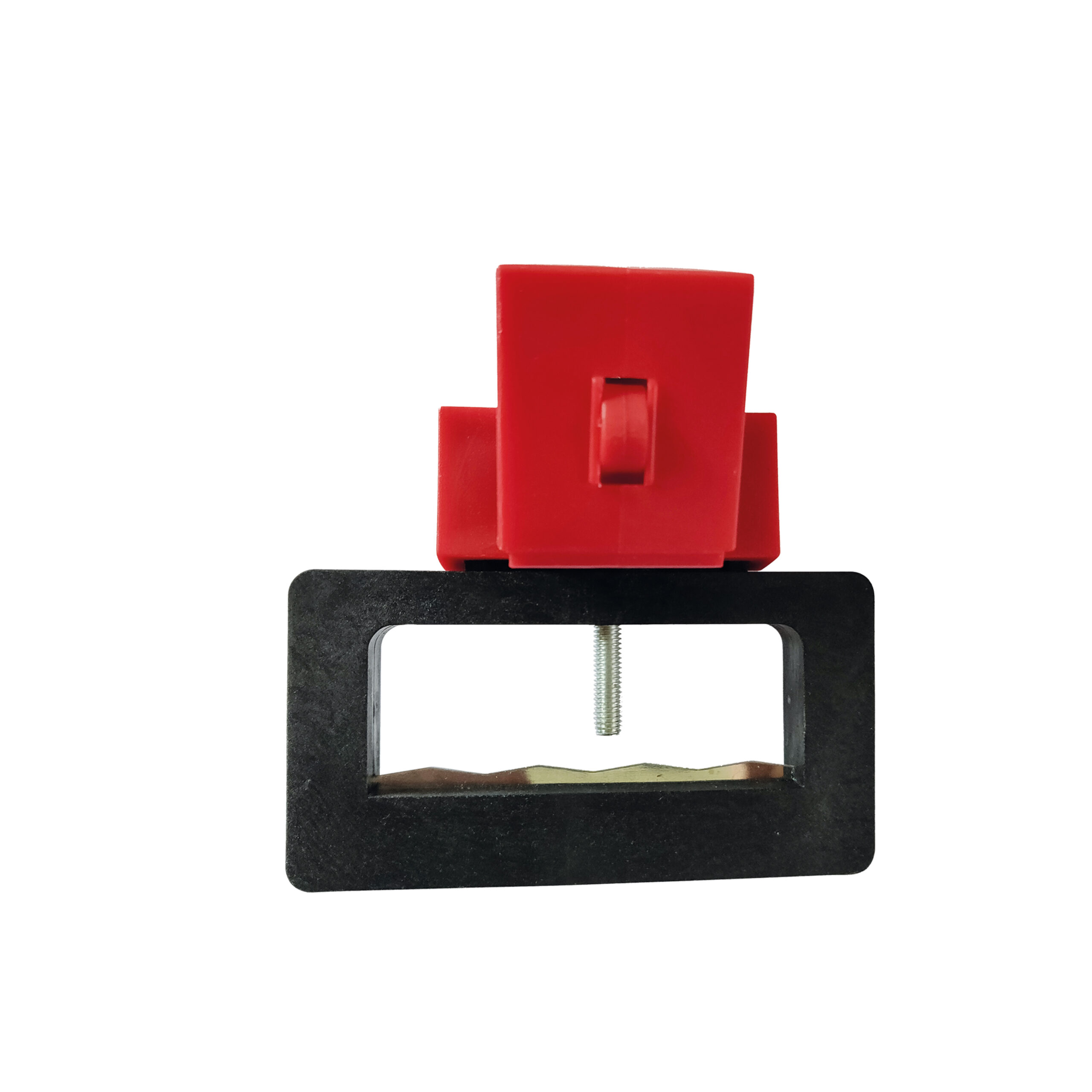

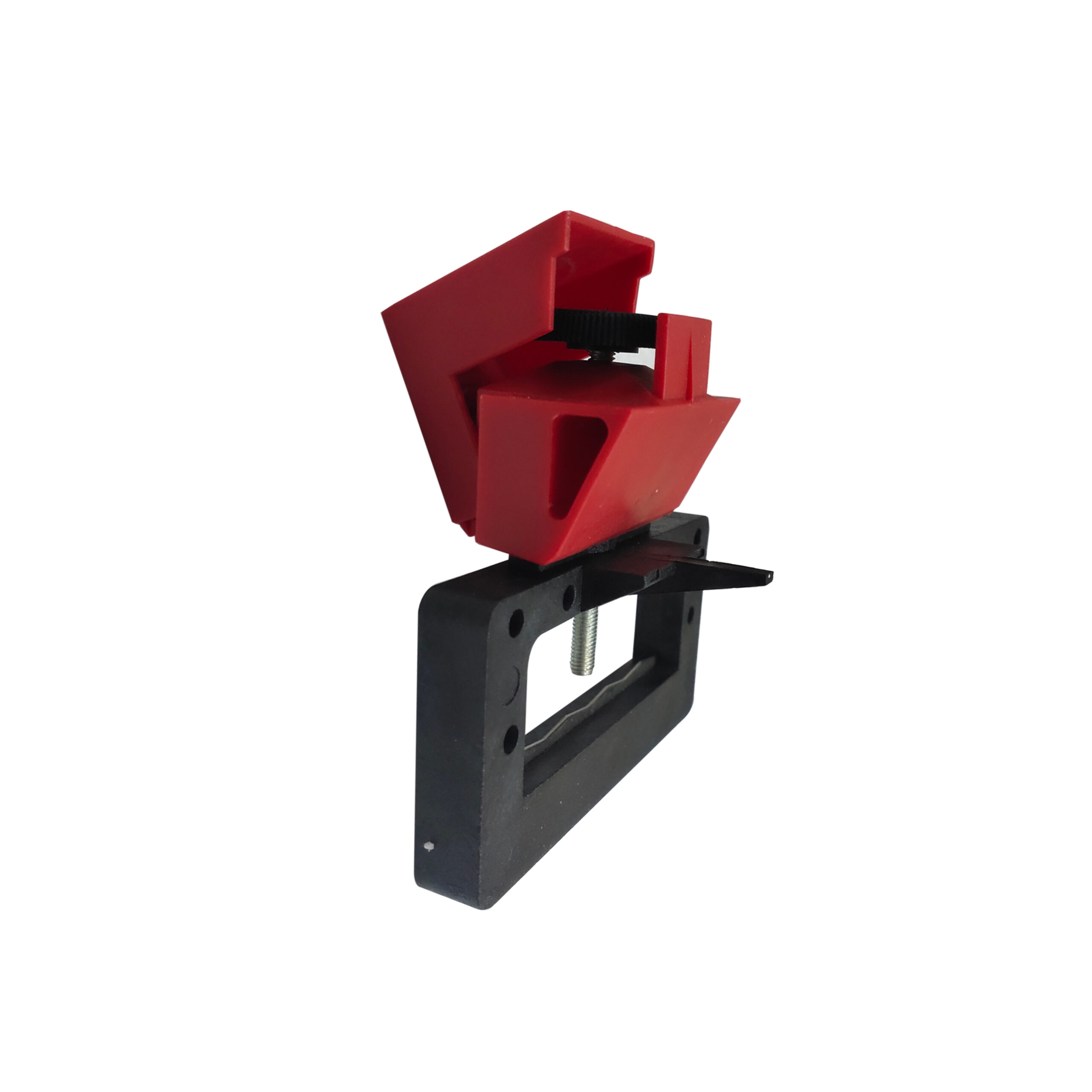

Snap-on Circuit Breaker Lockout, 1 locking hole
Accepts shackle up to : 7.5mm,
Inner Rectangular slot (teeth part) : 70mm X 23.47mm.
LS- BR43
Snap-on Circuit Breaker Lockout, 1 locking hole
Accepts shackle up to : 7.5mm,
Inner Rectangular slot (teeth part) : 70mm X 23.47mm.
Detail
• Suitable for 480/600V circuit breaker, the red colour stop bar indicates that
the switch is off, and green colour stop bar means switch is open;
• Can be permanently fixed on the power distribution board by the back selfadhesive track – just clean the surface and paste (without drilling)
• 1 locking hole
• Accepts shackle up to : 7.5mm,
• Inner Rectangular slot (teeth part) : 70mm X 23.47mm
• Nose width 4.2mm (thin line) / 30mm (thick part)
Product Application
- When & Where should use LOTO?
- Daily maintenance, adjustment, cleaning, inspection and commissioning for equipment. Enter into the limited space, hot work, dismantling work and so on in the tower, tank, electrified body, kettle, heat exchanger, pumps and other facilities.
- Operation involving high voltage. ( including the operation under the high-tension cable )
- Operation require closing the safety system temporary.
- Operation during maintenance and commissioning of non-processing.
