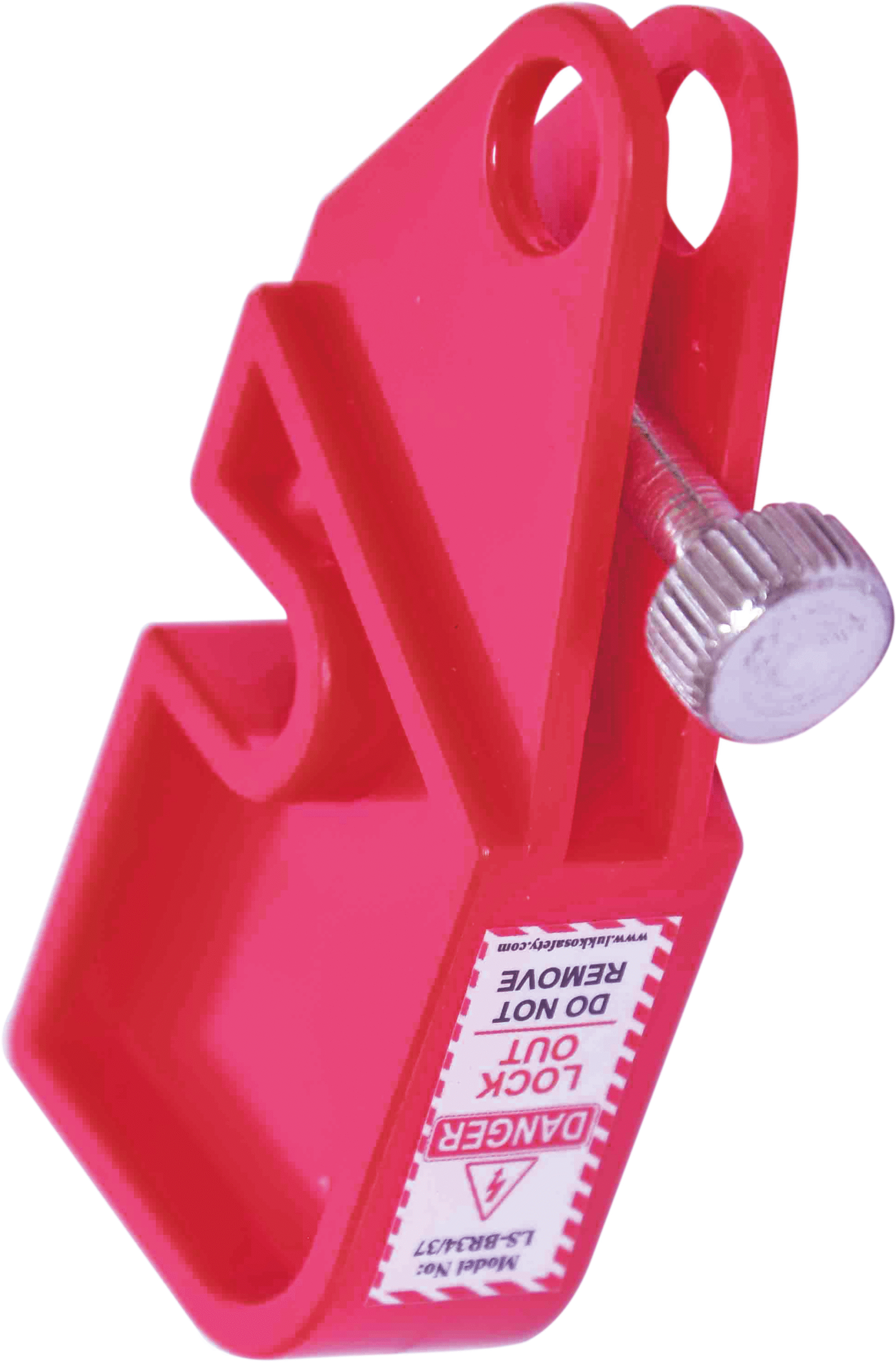

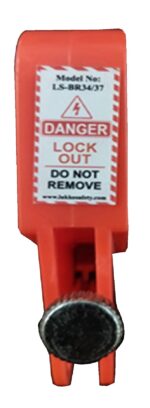

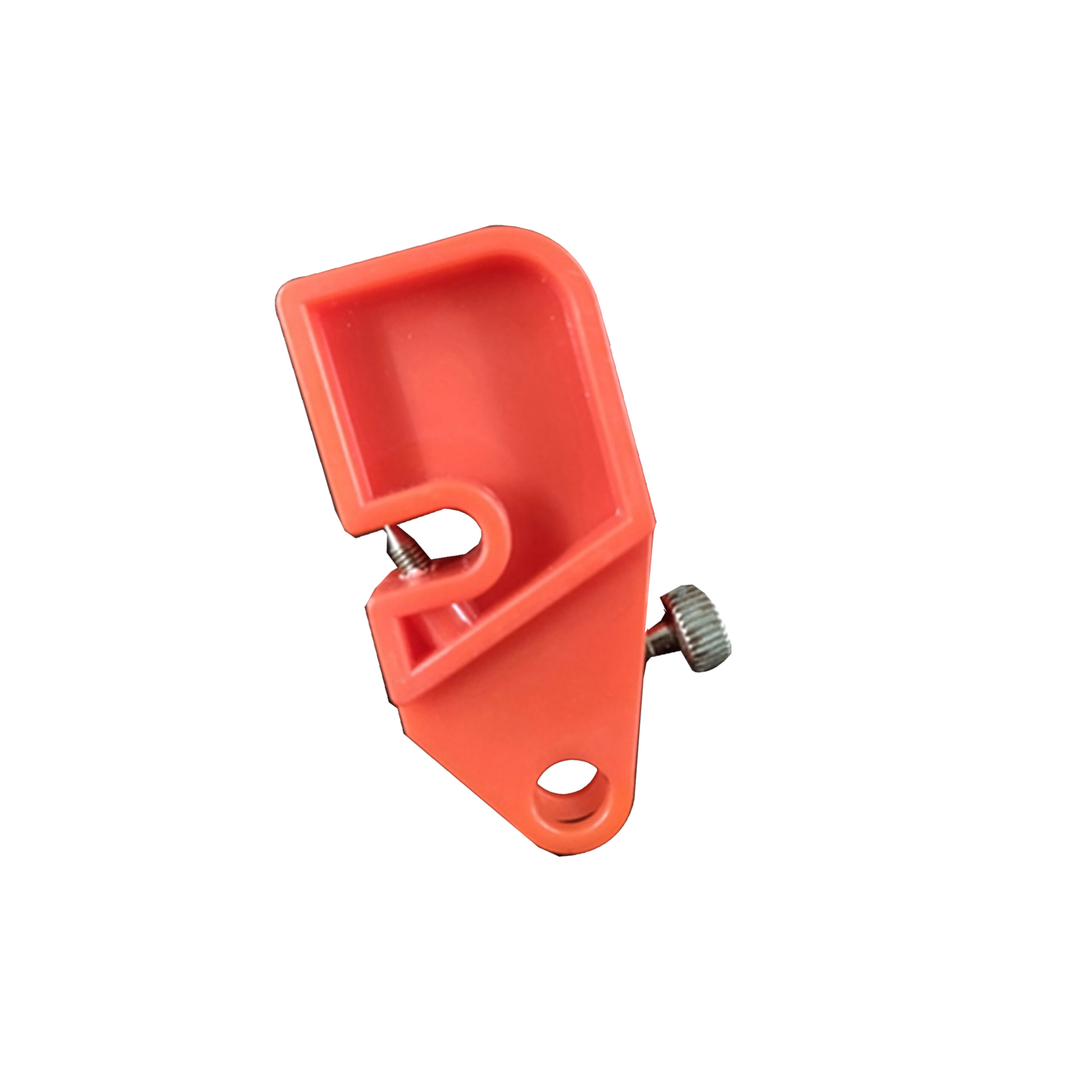

LS- BR36
Universal Electrical FUSE holder lockout large with foldable screw
Foldable screw: length 54mm, foldable length 30mm, thickness 3.7mm.
LS- BR36
Universal Electrical FUSE holder lockout large with foldable screw
Foldable screw: length 54mm, foldable length 30mm, thickness 3.7mm.
Detail
• Material : ABS + Metal screw
• Locking holes : 01
• Accepts shackle up to : 8.4mm
• Small normal screw: length 11.4mm, thickness 4.9mm
• Size : Height 58.7 mm (Height) and 15 mm (Width)
• locking curve 4.9mm
• This device is suitable for 20A to 400 A fuse holders.
• It is easy to install simply press onto the fuse holders and use
a screwdriver to tighten the screw in the device further set the
lock and tag by an authorized person.
• Device is ideal to use on multiple fuses
Product Application
- When & Where should use LOTO?
- Daily maintenance, adjustment, cleaning, inspection and commissioning for equipment. Enter into the limited space, hot work, dismantling work and so on in the tower, tank, electrified body, kettle, heat exchanger, pumps and other facilities.
- Operation involving high voltage. ( including the operation under the high-tension cable )
- Operation require closing the safety system temporary.
- Operation during maintenance and commissioning of non-processing.
