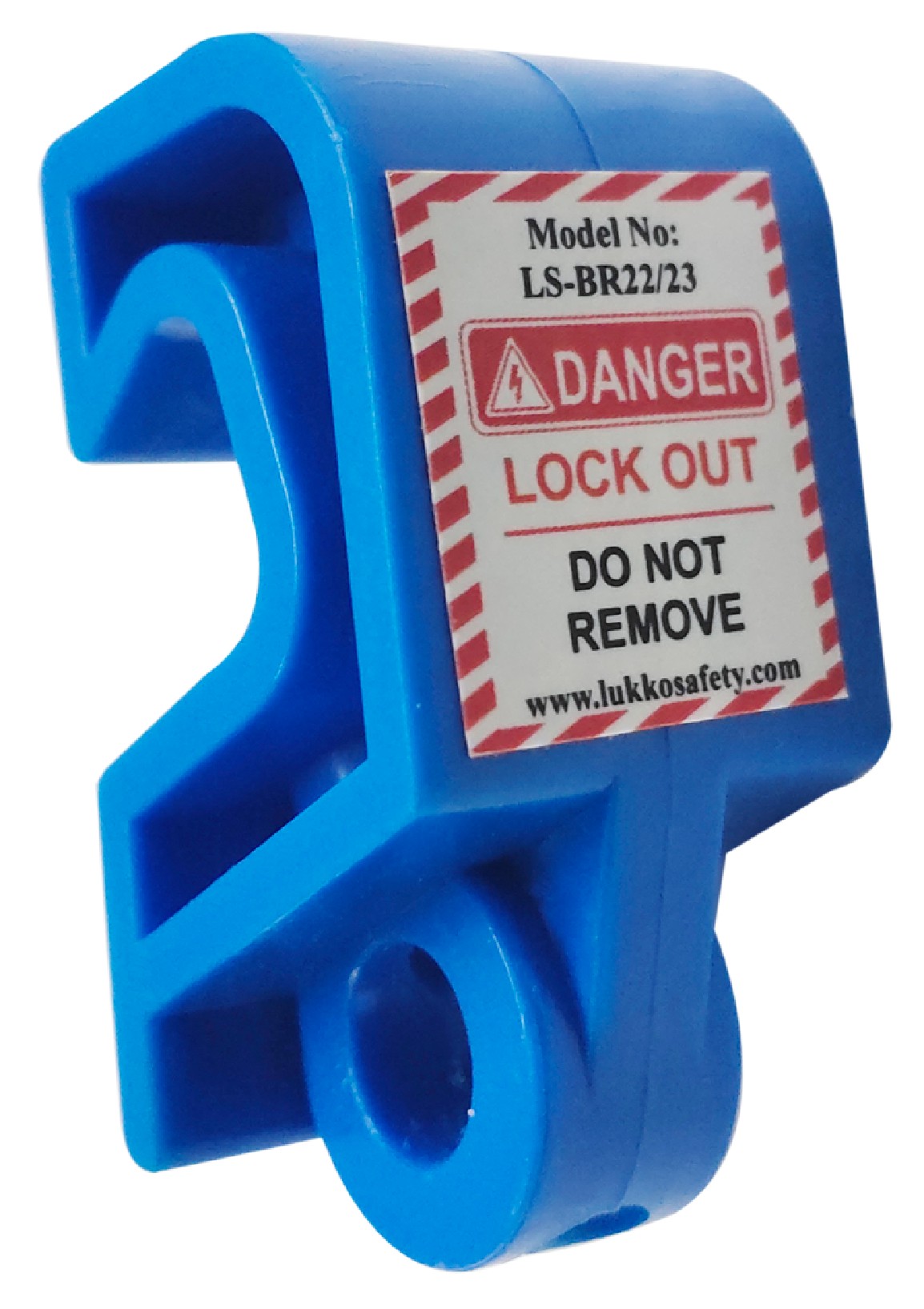

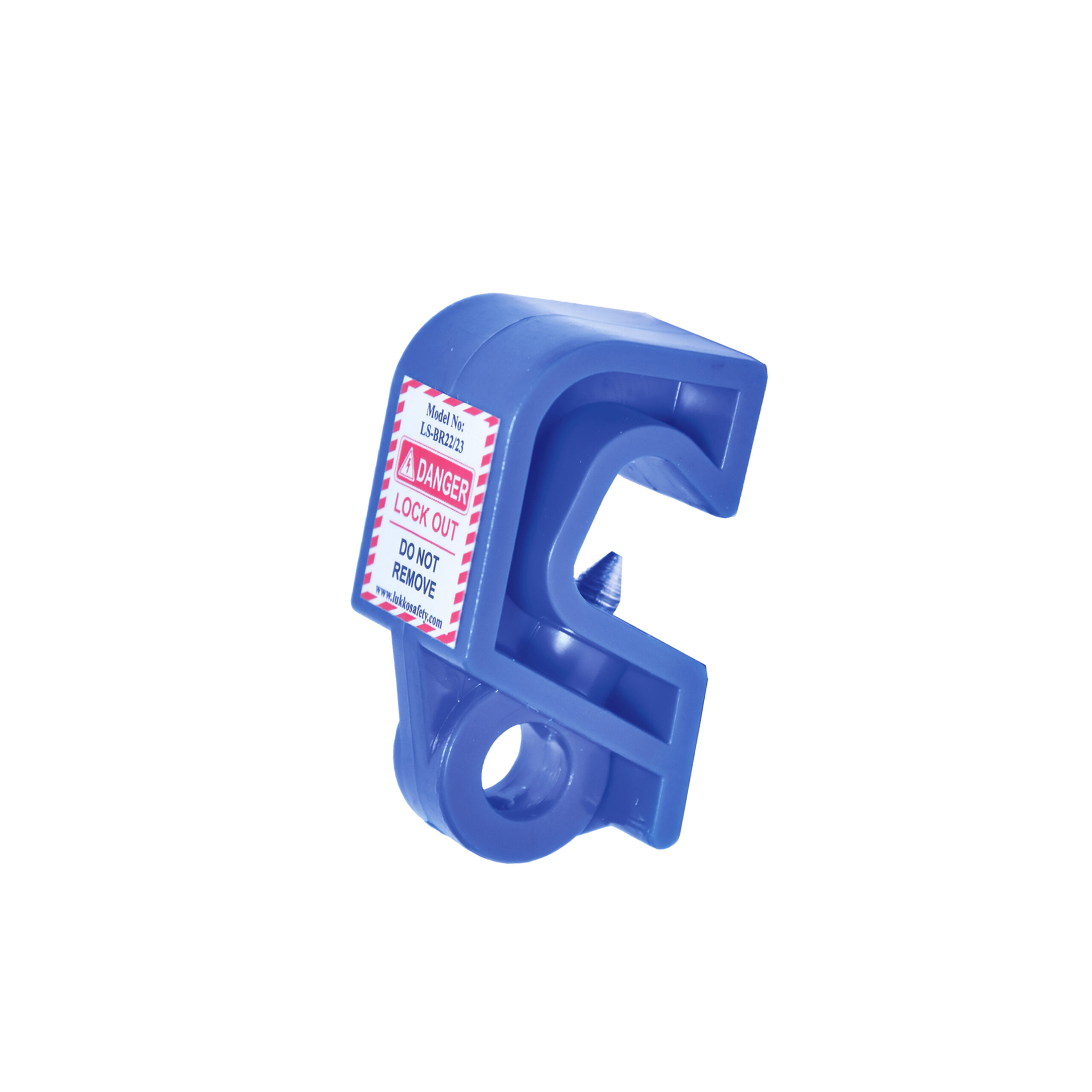

LS- BR22
Circuit breaker lockout – Small with normal screw & without nose
Height 48.5mm Width 22.7mm
MCB operator locking curve 11.5mm
Folding screw (overall length 51 mm, foldable length 29mm)
Accepts shackle upto 8mm
LS- BR22
Circuit breaker lockout – Small with normal screw & without nose
Height 48.5mm Width 22.7mm
MCB operator locking curve 11.5mm
Folding screw (overall length 51 mm, foldable length 29mm)
Accepts shackle upto 8mm
Detail
Material : ABS + Metal screw
• Locking Holes : 01
• Accepts shackle up to : 8 / 9 mm
• Non foldable screw: length 19.4mm, thickness 3.8mm
• Foldable Screw: length 54mm, foldable length 30mm,
thickness 3.7mm
• MCB operator locking curve 11.5 mm
• Used to isolate the MCB hence prevent accidental switching ON the device, can be installed only
in switched OFF position.
• Rust resistant screws.
• Suitable to lockout single / double / three / four pole operating handle circuit breaker.
Product Application
- When & Where should use LOTO?
- Daily maintenance, adjustment, cleaning, inspection and commissioning for equipment. Enter into the limited space, hot work, dismantling work and so on in the tower, tank, electrified body, kettle, heat exchanger, pumps and other facilities.
- Operation involving high voltage. ( including the operation under the high-tension cable )
- Operation require closing the safety system temporary.
- Operation during maintenance and commissioning of non-processing.
