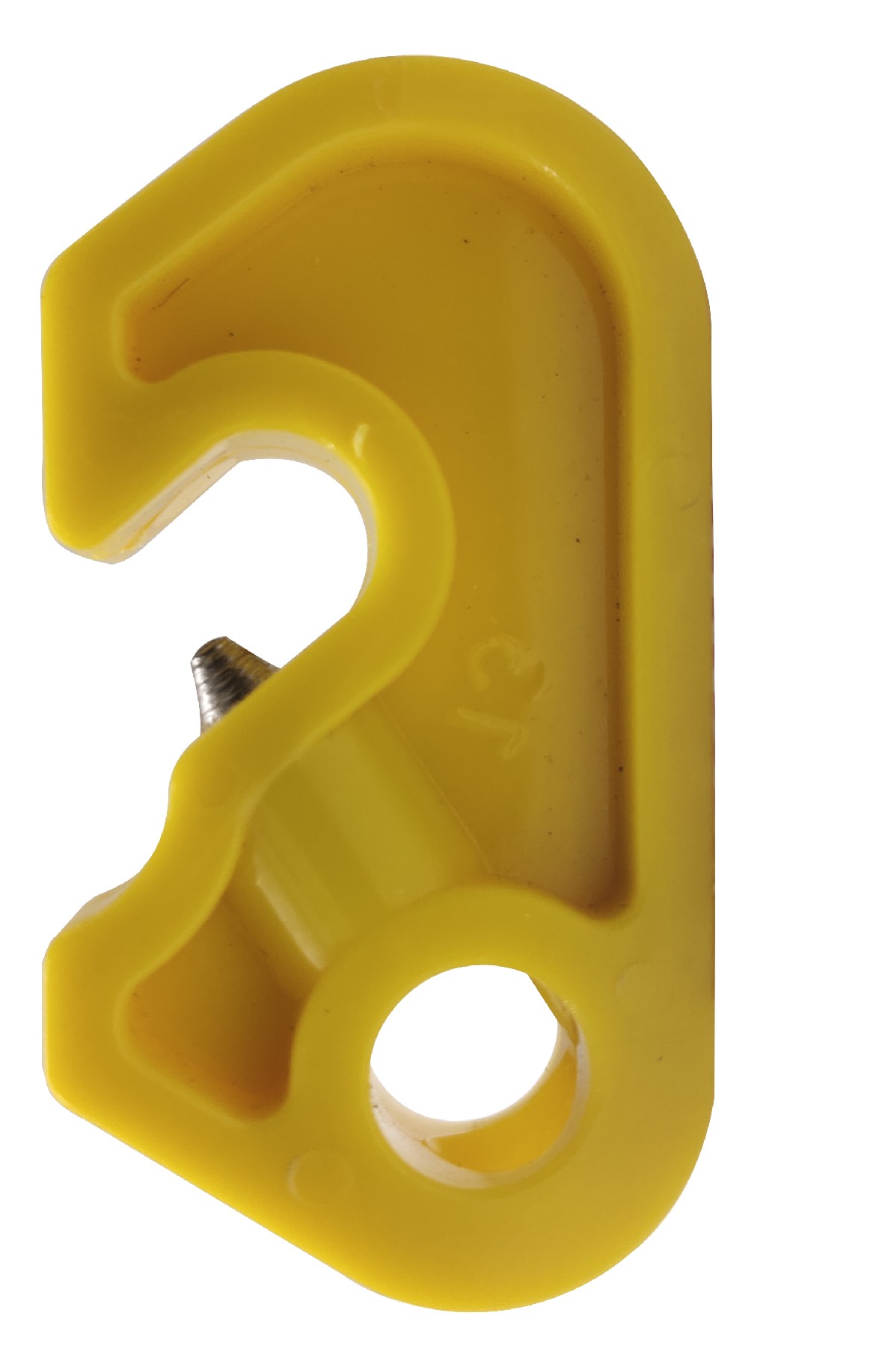

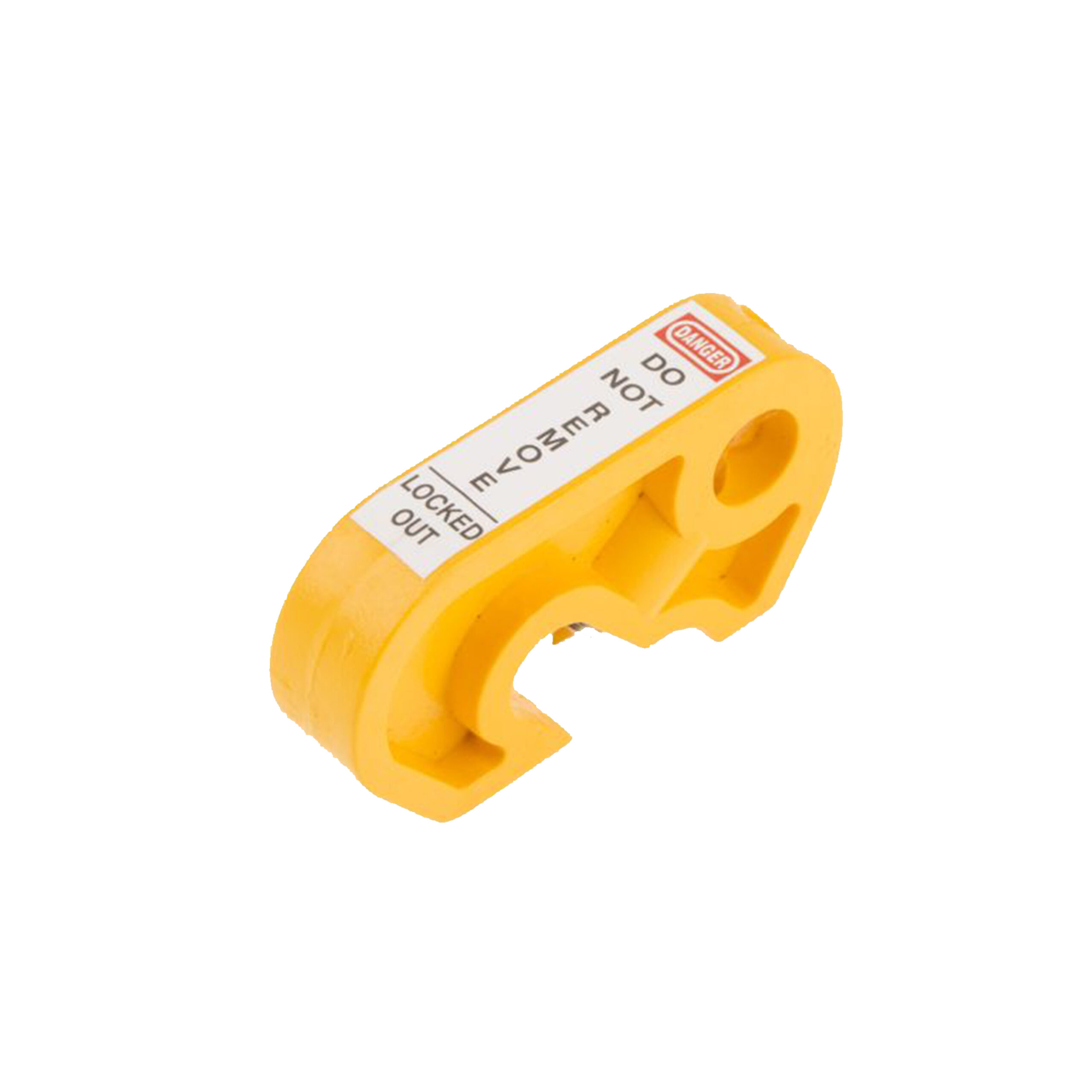

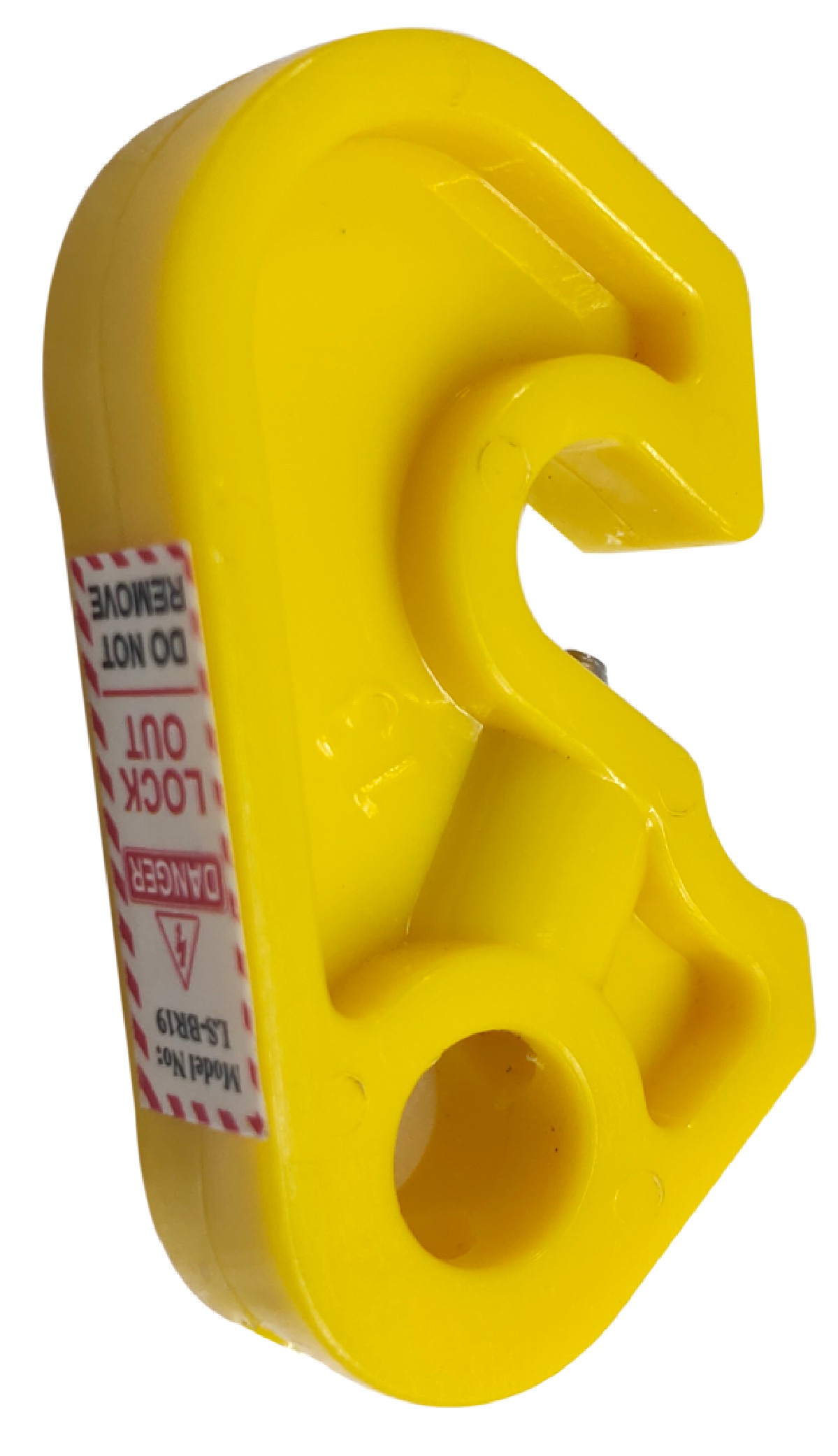

LS- BR19
Miniature Circuit breaker lockout curvature shape, Small, with normal screw
Non foldable screw (length 11.4mm, thickness 4.9mm)
Accepts shackle upto 8mm Height 47mm Width 9.6mm
MCB operator locking curve 8 mm
LS- BR19
Miniature Circuit breaker lockout curvature shape, Small, with normal screw
Non foldable screw (length 11.4mm, thickness 4.9mm)
Accepts shackle upto 8mm Height 47mm Width 9.6mm
MCB operator locking curve 8 mm
Detail
Material : ABS + Metal screw
• Locking holes : 01
• Accepts shackle up to : 8mm
• Weight : 6.5 gm
• Non foldable screw: length 11.4mm, thickness 4.9mm
• Size : Height 47mm, Width 9.6mm
• MCB operator locking curve 8 mm
• Circuit Breaker Lockout is used to isolate the electrical energy
to procure the electrical hazardous situation, applicable only
when the energy source is in switched OFF situation.
• Suitable to lockout single / double / three pole operating
handle circuit breaker.
Product Application
- When & Where should use LOTO?
- Daily maintenance, adjustment, cleaning, inspection and commissioning for equipment. Enter into the limited space, hot work, dismantling work and so on in the tower, tank, electrified body, kettle, heat exchanger, pumps and other facilities.
- Operation involving high voltage. ( including the operation under the high-tension cable )
- Operation require closing the safety system temporary.
- Operation during maintenance and commissioning of non-processing.
