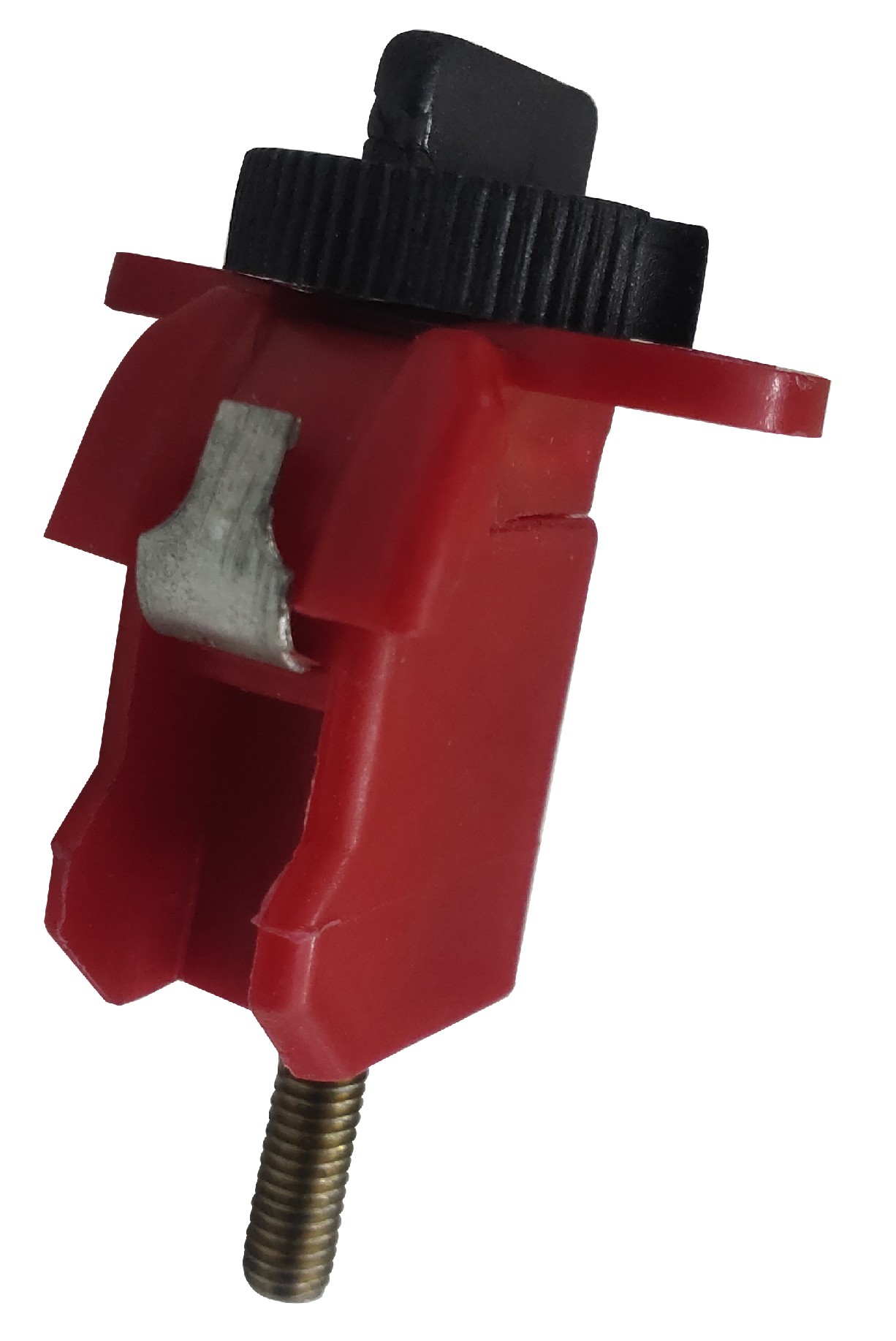

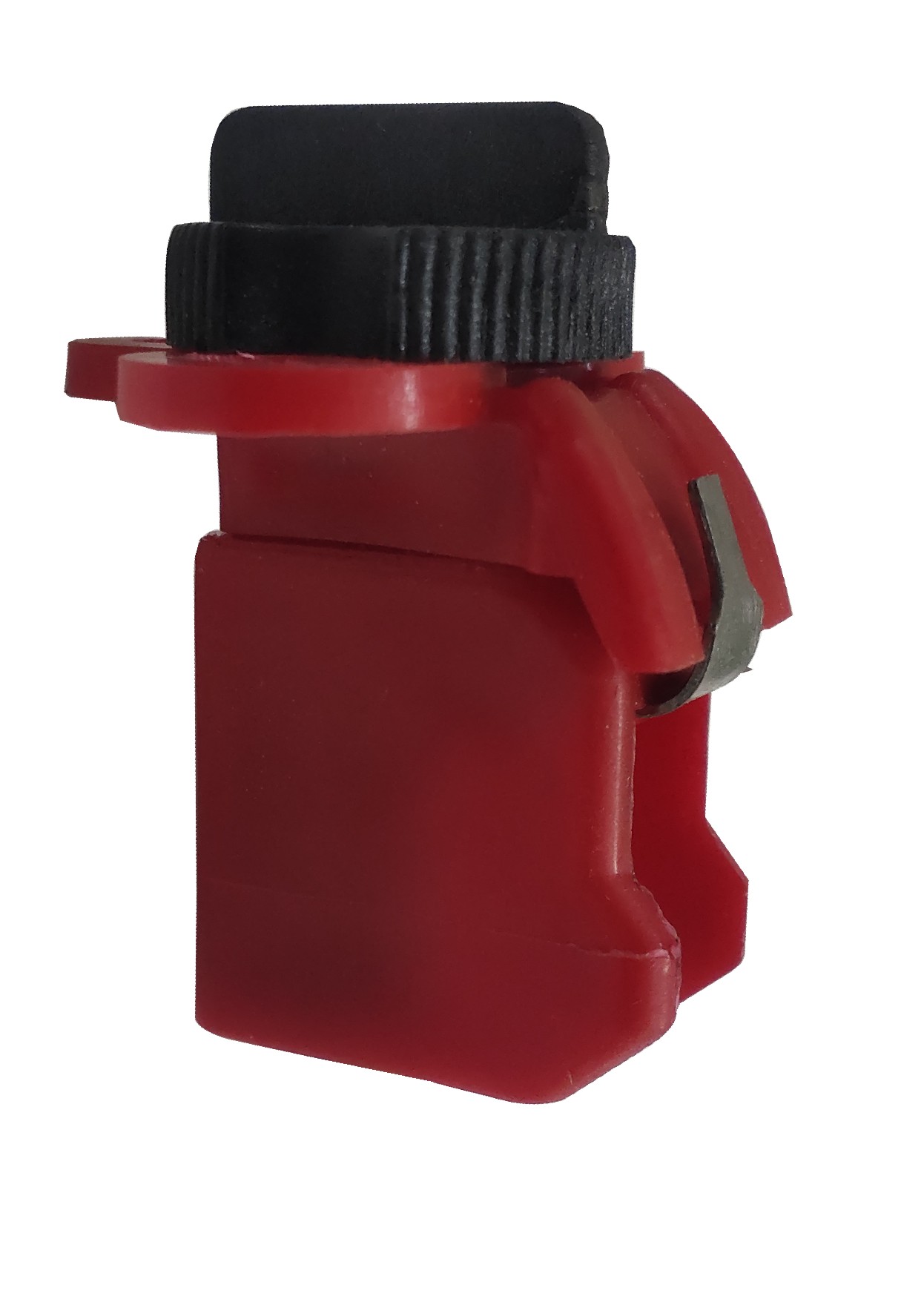

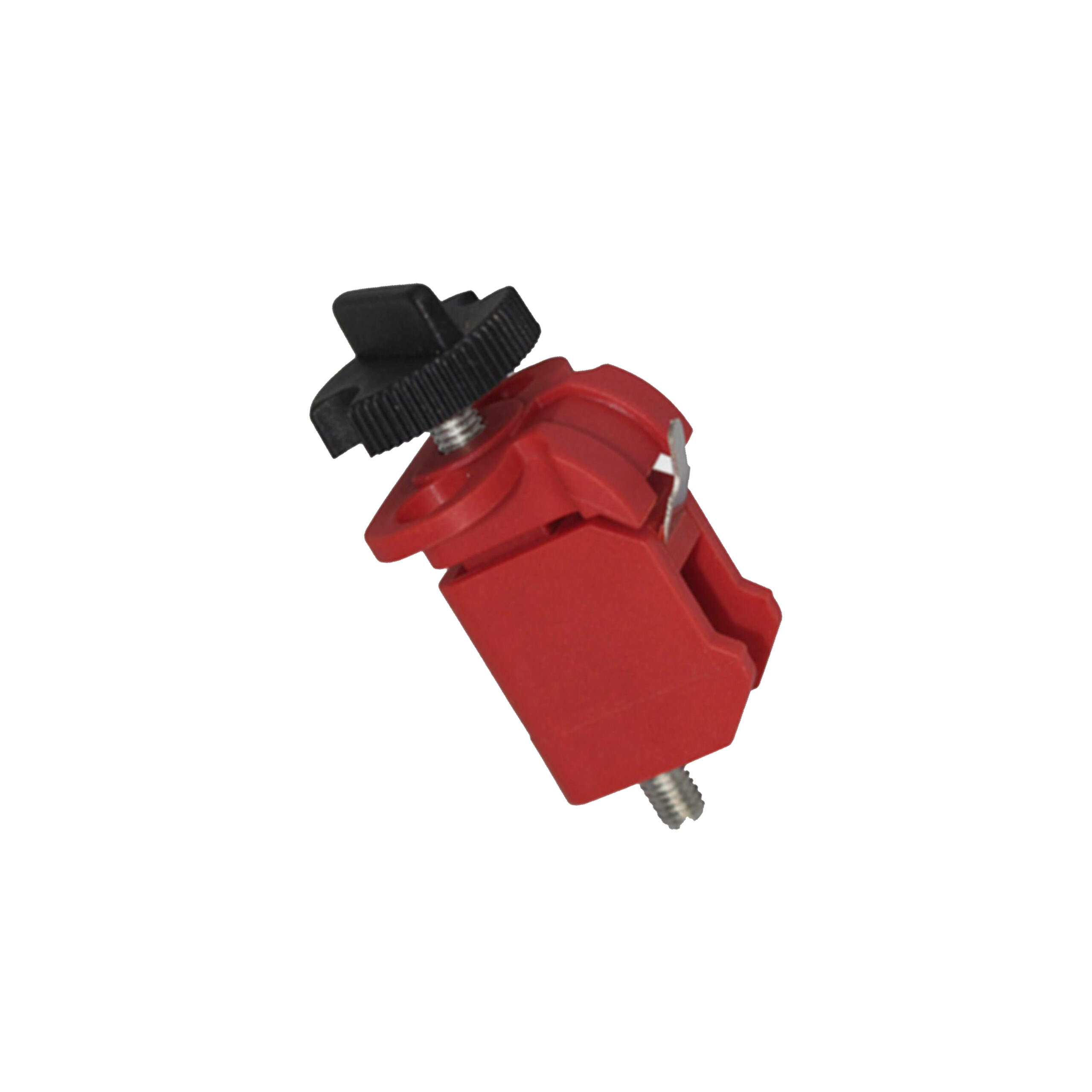

Detail

Material : ABS + Metal screw
• Locking holes : 01
• Accepts shackle up to : 8/ 8.6mm
• Non foldable screw: length 11.5mm, thickness 4.9mm
• Foldable screw: length 54mm, foldable length 30mm, thickness 3.7mm
• Size : Height 47 / 57.5mm, Width 9.6 / 13.8mm
• MCB operator locking curve 8 / 8.5 mm
• Circuit Breaker Lockout is used to isolate the electrical energy to procure the
electrical hazardous situation, applicable only when the energy source is in
switched OFF situation.
• Suitable to lockout single / double / three pole operating handle circuit breaker.

Product Application

• When & Where should use LOTO?
• Daily maintenance, adjustment, cleaning, inspection and commissioning for equipment. Enter into the limited space, hot work, dismantling work and so on in the tower, tank, electrified body, kettle, heat exchanger, pumps and other facilities.
• Operation involving high voltage. ( including the operation under the high-tension cable )
• Operation require closing the safety system temporary.
• Operation during maintenance and commissioning of non-processing.
