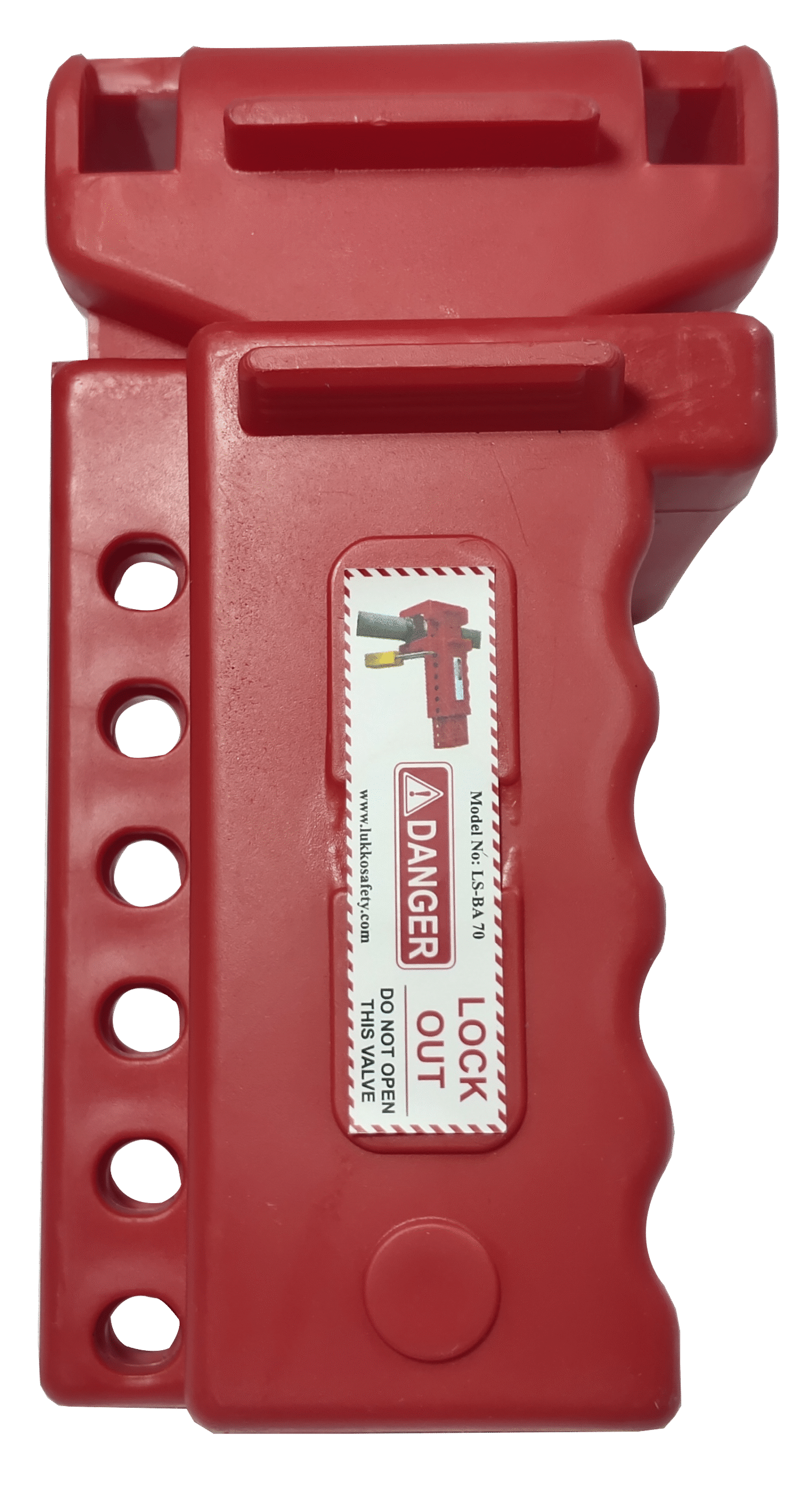

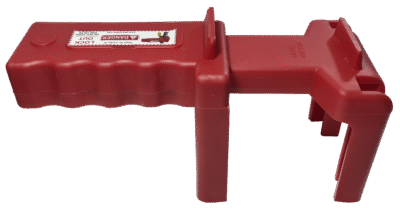

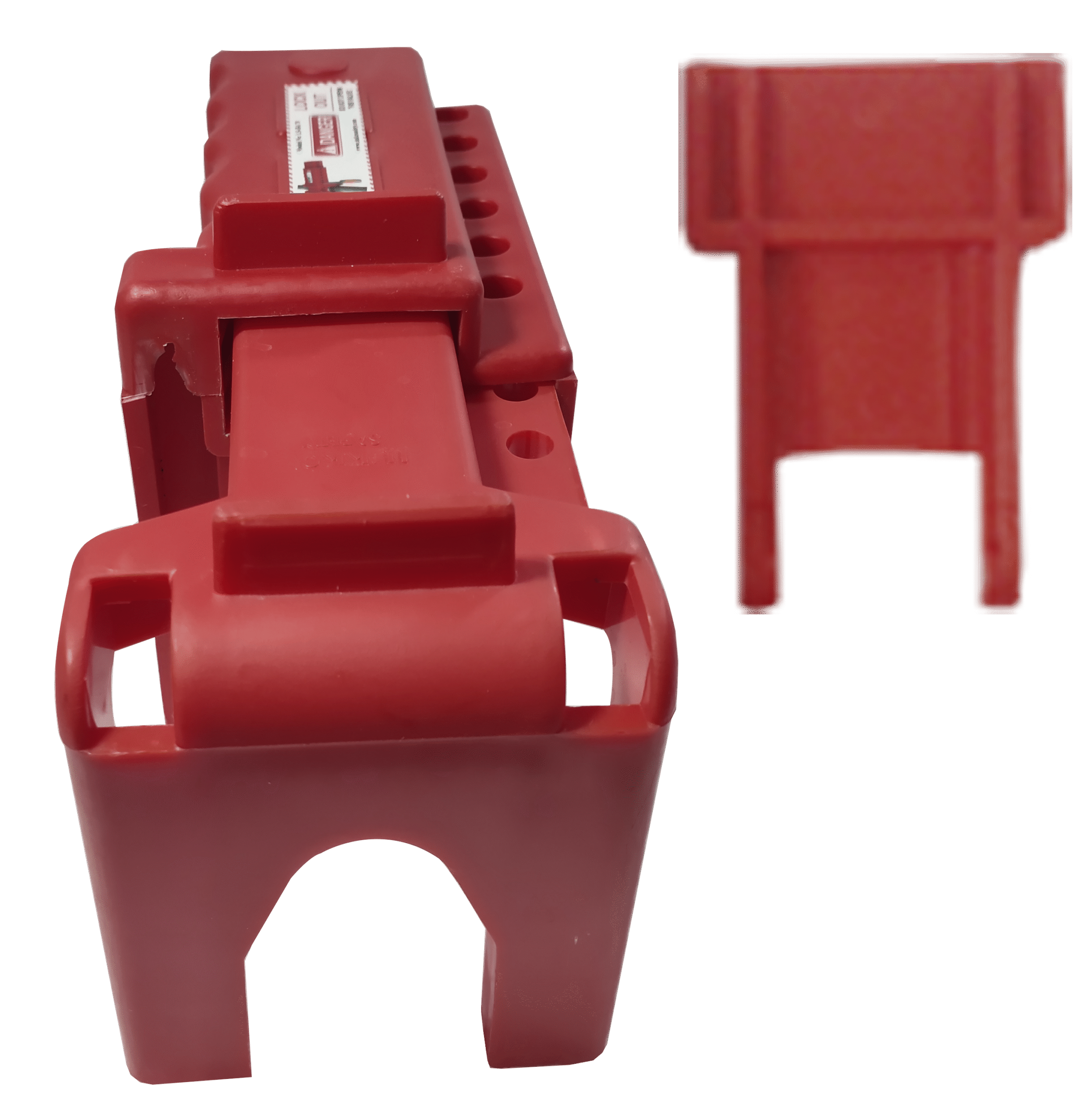

LS – BA69
Ball valve lockout – double leg (Slider & Cover)
with closed back and Front extension, 7 locking holes – C/E type
fits on valve sizes 2″ to 1/2” (63.5mm) Accepts shackle upto 7.5mm
LS – BA69
Ball valve lockout – double leg (Slider & Cover)
with closed back and Front extension, 7 locking holes – C/E type
fits on valve sizes 2″ to 1/2” (63.5mm) Accepts shackle upto 7.5mm
Detail
Material : Polypropylene
• Locking holes : 7 numbers.
• Suitable to lockout 2″ to 1/2” ball valve after the handle is
removed.
• Accepts shackle maximum up to : 7.5mm
• Advantage:
This device is fully dielectric device that is very efficient,
inexpensive and safe, also highly resistant to solvent and other chemical
products, resist cracking, abrasion and higher temperature changes.
Product Application
- When & Where should use LOTO?
- Daily maintenance, adjustment, cleaning, inspection and commissioning for equipment. Enter into the limited space, hot work, dismantling work and so on in the tower, tank, electrified body, kettle, heat exchanger, pumps and other facilities.
- Operation involving high voltage. ( including the operation under the high-tension cable )
- Operation require closing the safety system temporary.
- Operation during maintenance and commissioning of non-processing.
